Jubelio Omnichannel Guide

Hi, Pebisnis!

Once you know about the concepts and components of Order Processing, you can start doing order fulfillment in Jubelio. The first stage in order fulfilment is picking the ordered goods from each racks.

The process of picking goods in the warehouse can be done in two ways, namely cluster picking and batch picking.

1. Cluster Picking can be used if you pick goods based on each order.
2. Batch Picking can be used if you pick the ordered goods in bulk, after all the products have been picked, then sorting is done based on their respective orders.

Cluster Picking Process

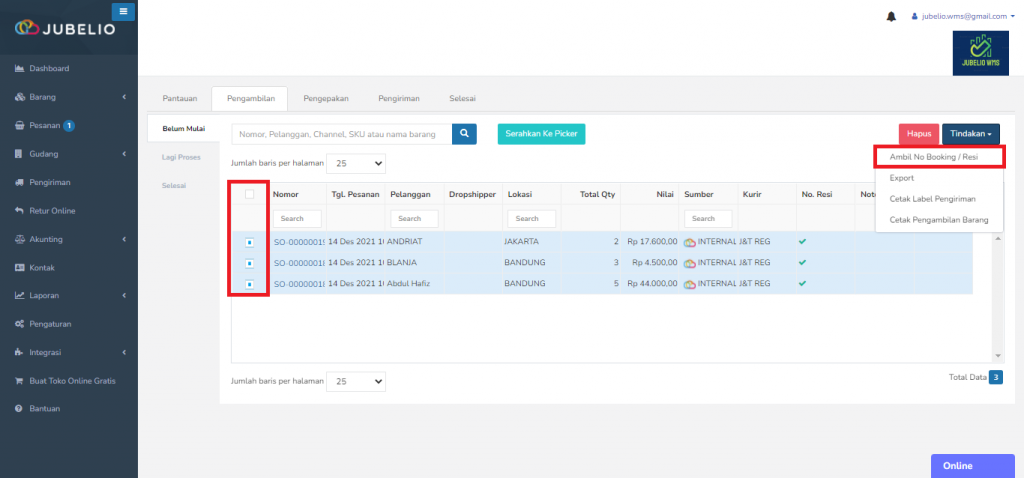

1. Check all the order number fields, then click Tindakan and select Ambil No Booking/resi.

2. Then, print Label Pengiriman.

3. A new tab will open containing Label Pengiriman in PDF form.

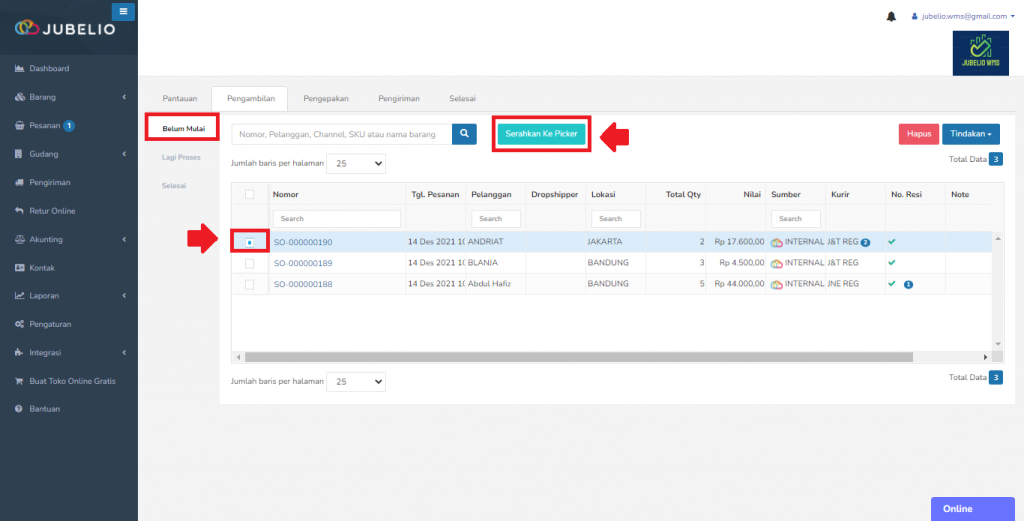

4. After that, click Serahkan ke Picker. So, one picklist is for one picker.

5. Then, Scan the Picker ID and enter the Order Number or select it manually in the No. Pesanan column on the form that appears.

6. The order will move to the Lagi Proses sidebar on the Pengambilan tab, then double-click the order.

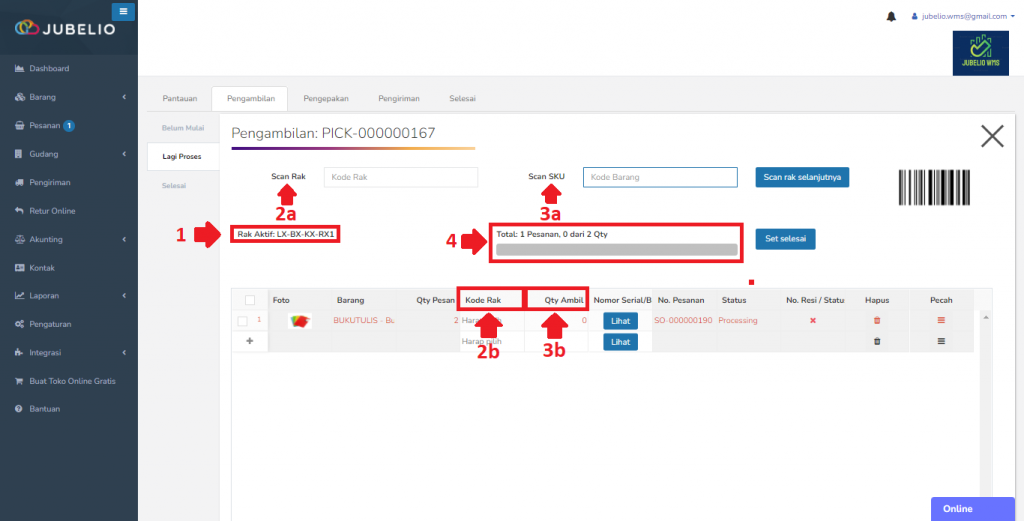

7. The Pengambilan form will appear.

Rak Aktif: is the default shelf. Fill in the Kode Rak column and the quantity you want to process (Qty Ambil) by scan or manually input them to Jubelio. In addition, when the order has been picked, the total progress bar of the order will be fully filled.

9. Once finished (no additional items from different rack codes), the order will automatically moves to the Belum Mulai sidebar of the Pengepakan tab. However, if there are picked items from different rack code, click Pecah.
10. After that, the Ambil barang dari beberapa lokasi form which contain the Kode Rak and Scan Kode Barang, then click SImpan.
11. The order will automatically move to the Belum Mulai sub tab of the Pengepakan tab.

Batch Picking Process

1. Tick all the checkboxes next to the order number column, then click Tindakan and select Ambil Booking/Receipt No.

2. After that, tick the order number column and click Cetak Pengambilan Barang.

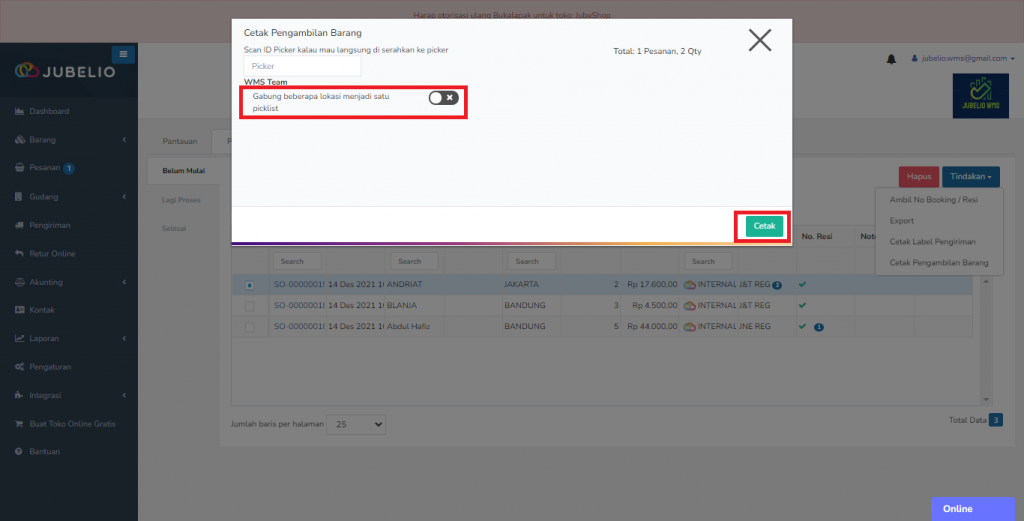

3. Scan ID Picker or Default Staff (eg WMS Team) and click Cetak on the form displayed.

4. You can also combine orders from multiple locations into one picklist as long as the picker has access to all warehouse.

5. A new tab that showing the picklist will open.

6. The Rekomendasi Rak column is a rack with a recorded picking priority having a default batch number/rack allocation/rack. For other conditions, see rack allocation.The order will move to the Lagi Proses tab on the Pengambilan tab, then double-click the selected order.

7. The Pengambilan form will appear.

Rak Aktif: is the default shelf. Fill in the Kode Rak column and the quantity you want to process (Qty Ambil) by scan or manually input them to Jubelio. In addition, when the order has been picked, the total progress bar of the order will be fully filled.

9. Once finished (no additional items from different rack codes), the order will automatically moves to the Belum Mulai sidebar of the Pengepakan tab. However, if there are picked items from different rack code, click Pecah.
10. After that, the Ambil barang dari beberapa lokasi form which contain the Kode Rak and Scan Kode Barang, then click SImpan.
11. The order will automatically move to the Belum Mulai sub tab of the Pengepakan tab.



Done with picking, please proceed to the packing stage of order fulfillment.
